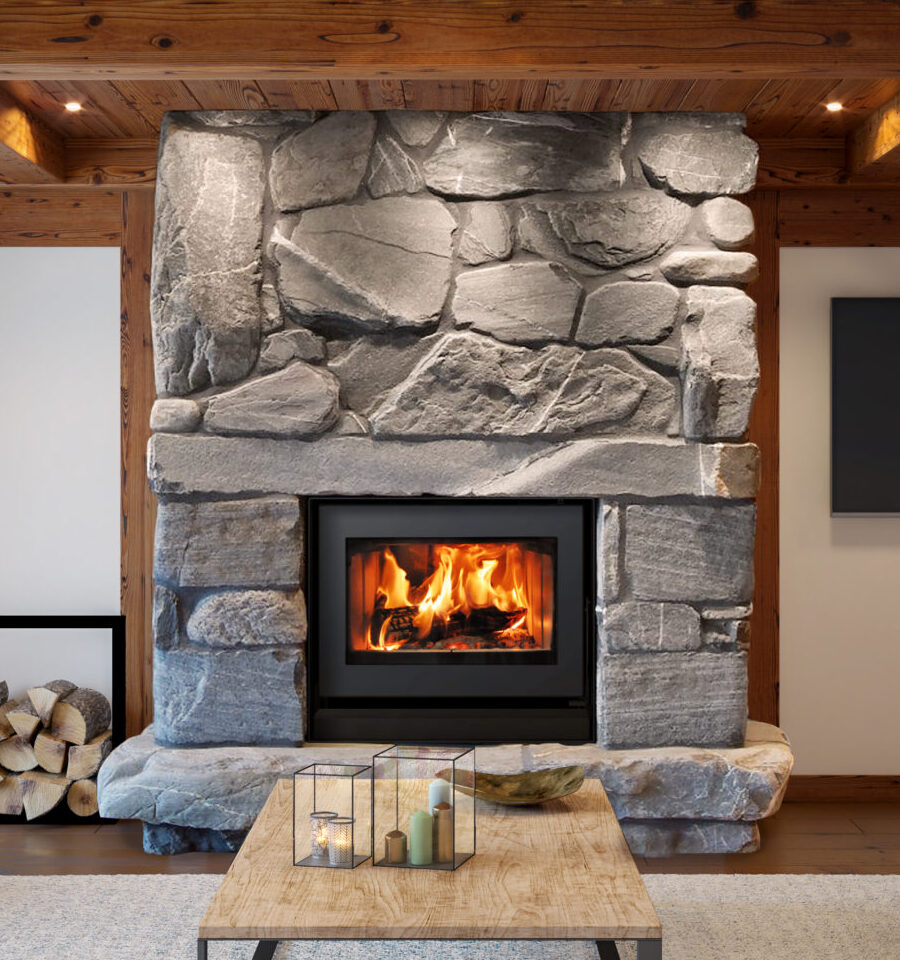

The Focus 3600B’s versatile size, large viewing space, 1.7gr/h emissions and high efficiency make it ideal for retrofits and new installations alike.
Power and performance in a small package. At 2.04 cubic feet, the firebox of the Focus 3600B is the same size as the average wood stove, except it takes up less floor space and has a contemporary, built-in design. Despite its compact size, it offers a large viewing space and generates an impressive amount of heat. With such a small footprint, the Focus not only saves space in the home, but it can be installed virtually anywhere.
*See a product you like? Call our store for all and any product inquiries. Our knowledgeable staff is ready to assist you in finding a new fire appliance to warm up your home.
Product Request Quote
| GENERAL SPECIFICATIONS | |
|---|---|
| Outside Dimensions | 34 3/8″ W X 40 5/8″ H X 22 1/2″ D |
| Firebox Dimensions | 2.04 cu ft
Based on overall firebox dimensions, EPA firebox volume per certification testing is 1.6 cu ft |
| Shipping weight | 398 lbs |
| Glass viewing size | 241 in2
20 ½” W x 11 ¾” H |
| Firewood Length | EPA tested with cribwood. Can accept up to 18″ logs. |
| Chimney | 6″ Excel |
| Door Finish | Black |
| Outside Air | 4″, meets R2000
All RSF models come equipped to accept a 4″ outside air duct, a 5″ can also be used. All models can also be installed to operate using room air. |
| Mobile Home Approved | YES |
| PERFORMANCE | |
|---|---|
| EPA Certification | 1.7 g/h |
| BTU Output | 19,077 BTU/h
Based on EPA certification testing using cribwood and calculations from CSA B415.1:22 |
| BTU Maximum | 50,000 BTU/h
Based on engineering calculations using firebox volume, efficiency, loading density (12lb/cu ft for hardwood), average humidity, reloading interval, type of installation, etc. |
| Heating Capacity | 800 to 1,500 ft2
Depends primarily on wood quality, ambient air temperature and building heat loss. |
| Optimal Efficiency | 75.3%
Low Heating Value (LHV) using CSA B415.1:22 calculations. |
| EPA Average Efficiency | 70%
High Heating Value (HHV) using CSA B415.1:22 calculations. |
| EPA Average CO | 1.3 g/min
Carbon Monoxide (CO), using data from EPA crib wood testing |
Additional information
| Design Style | Traditional |
|---|---|
| Brand | RSF |
| Fuel Type | Wood |
| Product Type | Fireplace |
